What you get

  • 17 Shadow sensors
  • Wireless controller
  • All wearables
  • Storage and transport case
  • One year warranty
  • Online training session
  • Free software updates
  • Excellent technical support

Designed for production

High-quality construction

Your durable wearable components are ergonomic and built to withstand daily production use.

Excellent support

We want you to succeed and are here to help. Contact our capable team by phone, email, and video call.

Protect your investment

Your Shadow mocap suit comes with a one-year warranty. Purchase Preferred Care to extend your coverage and expedite shipping on all warranty service.

Designed and manufactured in the USA

Shadow is made with care using only the highest quality miniature inertial sensors.

Technical data

Sensors

17 precision inertial measurement units
3-axis accelerometer, gyroscope, and magnetometer
2 pairs pressure insoles

Sample rate

100, 200, or 400 Hz output data rate
1000 Hz internal update rate

Orientation

Drift free, 3D rotation
0.5° static accuracy
2° dynamic accuracy

Size

33 x 18 x 6 mm miniature sensors

Weight

1.2 kg (2.6 lbs) wearable
1.6 kg (3.5 lbs) packed for travel

Battery

8 hours
10 Ah capacity

Wireless

Wi-Fi 5 (802.11ac)
Indoor Range 32 m (105 ft)
Outdoor Range 95 m (310 ft)

Controller

8 GB storage
Status LED

Latency

20 ms wireless (Wi-Fi)
5 ms wired (USB)

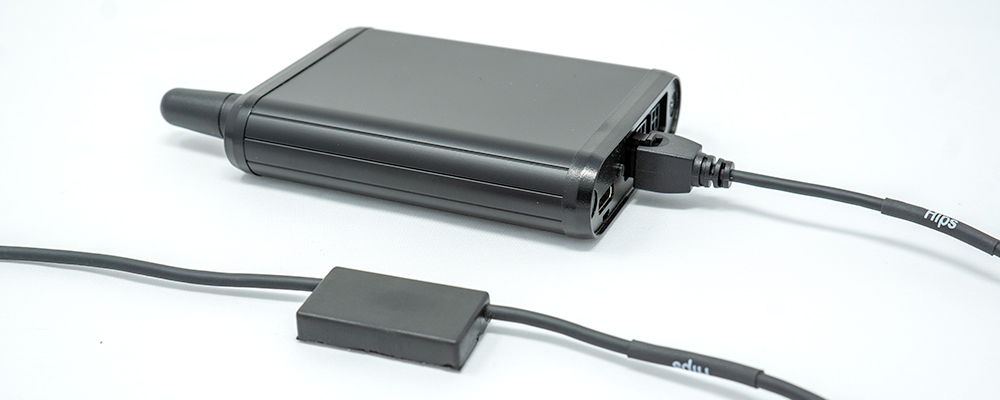

Shadow Wi-Fi controller plugged into a sensor

Sensor specs

Your Shadow system includes 17 precision inertial measurement units.

Each sensor module takes high speed measurements to capture your movement and pose.

Your measurements are synced and collected every 10 milliseconds by the wireless controller and streamed back to your device.

RangeResolution
Accelerometer±8 g0.18 mg
Gyroscope±4000 °/s0.12 °/s
Magnetometer±8 gauss0.25 mG
Outdoor recording session with the Shadow mocap suit

Requirements

Operating System

Works on Windows, macOS, Linux, iOS, Android

Connectivity

Requires Wi-Fi 5 (802.11ac) or a USB Standard-A port

Internet access

Recommended for setup and to download free updates

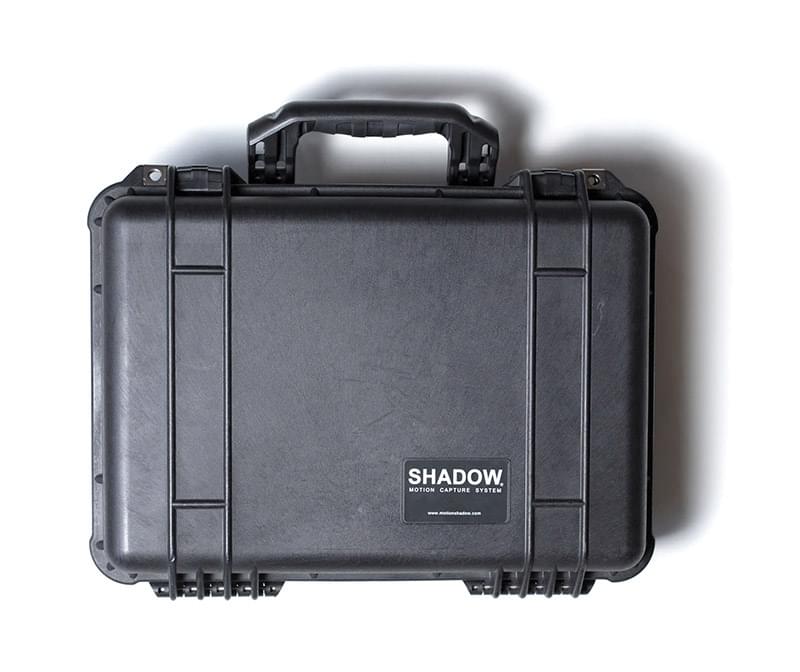

Shadow system packed in its hardshell case
